3.600 lm
Smarter lighting, brighter business
- Bright working light
- Various colour temperatures
- Simple replacement of TL-luminaires
- Two measurements
- Prismatic or opal diffuser
Features
- Suitable for suspended ceilings of 1200x300 mm
- Sleek finish, with seamless integration into office spaces
- High light output and even distribution of the light
- Designed for display screen workstations
- Available in 3000K, 4000K and 5000K colour temperatures
- Option for emergency lighting
- DALI-control possible for dynamic light control
Technical features
| Suitable for wall mounting | No |
|---|---|
| Suitable for suspended mounting | No |
| Suitable for ceiling mounting | No |
| Suitable for built-in mounting | Yes |
| Suitable for surface mounting | No |
| Suitable for light line configuration | No |
| Suitable for workplace according to EN 12464-1 | No |
| Lamp type | LED not exchangeable |
| Housing material | Steel |
| Surface protection housing | Powder coating |
| Housing colour | White |
| Material cover | Plastic, opal |
| Type of grid | None |
| Voltage type | AC/DC |
| Nominal voltage | 220V - 240V |
| Nominal current | 104mA - 104mA |
| Type of control gear | LED operating device current-controlled |
| With control gear | Yes |
| Light distributor | Diffuser lens/optic/panel |
| Light distribution | Symmetric |
| Beam angle | Open beam/diffuse |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Energy efficiency class of the light source according to EU regulation 2019/2015 | Not required |
| Rated lifetime L70/B50 at 25 °C | 100000h |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 90% |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | 85% |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 5% |
| Failure rate at median useful life of 75,000 h at 25 °C ambient (tq) | 10% |
| Max. number of luminaires per miniature circuit breaker B16 (MCB) | 30 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB) | 37 |
| Impact strength | IK03 |
| Rated ambient temperature according to IEC 62722-2-1 | -20°C - 45°C |
| Suitable for emergency lighting | Yes |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Max. system power | 24W |
| Colour rendering index CRI | 80-89 |
| Power factor | 0.95 |
| Width | 295mm |
| Height/depth | 43mm |
| Length | 1195mm |
| Type of wiring | Ending |
| Number of poles | 3 |
| Conductor cross section | 2.5mm² |
| Connection type | Bus |
| Unified Glare Ratio (UGR) | 24 |
| Suitable for workplace according to EN 12464-1 | Yes |
| Material cover | Plastic, structured |
| Unified Glare Ratio (UGR) | 19 |
| Number of poles | 5 |
| Colour temperature | 3000K - 4000K |
| Luminaire efficacy | 0lm/W - 150lm/W |
| Rated luminous flux according to IEC 62722-2- 1 | 0lm - 3600lm |

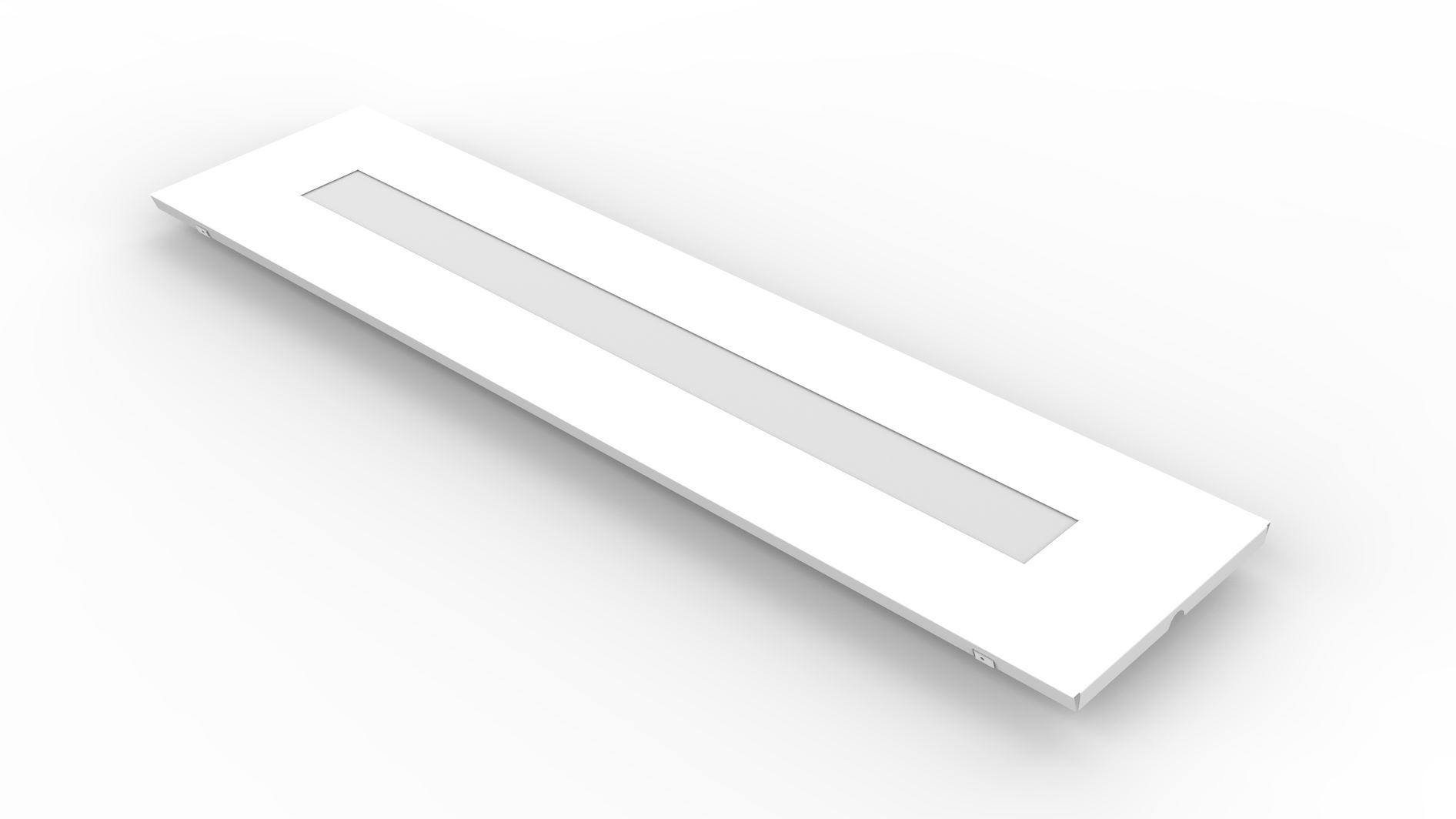

Images
